10 Best Direct Drive Helical Gearbox Picks for 2026: Smooth, Low-Backlash Options for Stepper, Servo, and Industrial Use

If you need smoother motion, better torque control, and a compact drivetrain, the right gearbox can make a big difference. This roundup focuses on practical options for stepper, servo, CNC, and industrial applications.

We selected models that balance ratio, mounting compatibility, backlash control, and durability so you can narrow down the best fit faster.

Best 10 Direct Drive Helical Gearbox Picks for 2026

Compact Helical Planetary Reducer – 1 Stage 7:1 Servo Input

If you need a direct drive helical gearbox for a compact motion setup, this 1-stage planetary reducer is built around speed reduction and torque amplification. It’s aimed at stepper motor use, but its small footprint and efficient transmission also make it a practical fit for CNC milling machines, lathes, bench-top equipment, packaging machinery, and similar applications.

Best For: Compact machinery users who need a simple, low-noise gearbox for torque increase and reduced speed.

Pros:

• 1-stage 7:1 reduction for straightforward speed control
• Designed to improve transmission efficiency and reduce energy loss
• Compact installation with four-screw mounting
• Durable construction with low-noise operation

Cons:

• Primarily designed for stepper motor use
• Input shaft sizing is specific to 60mm frame AC servo motor setups

Overall, this gearbox is best viewed as a compact reducer for practical machine integration rather than a general-purpose unit. Its focus on efficiency, easy mounting, and quiet operation makes it a solid option when the application matches its size and shaft requirements.

Heavy-Duty Right Angle Gearbox – 40 HP 1:1 Crosshole Shaft

This direct drive helical gearbox alternative is a right angle bevel gearbox built for 1:1 transmission in heavier-duty equipment. With a 40 HP rating, 1800 max RPM, and keyed shafts on both input and output, it’s intended for applications where a compact right-angle power transfer package is needed.

Best For: High-power setups that need a right-angle gearbox with matched keyed shafts and a 1:1 ratio.

Pros:

• 40 HP rating supports demanding applications
• 1:1 ratio for direct power transfer
• Input and output shafts both use 1" keyed shafts
• Compact footprint with defined bolt pattern and tapped holes

Cons:

• Right-angle bevel design is not a helical gearbox
• Specific dimensions and shaft setup limit flexibility

As a gearbox for power transfer rather than speed reduction, this unit is most relevant when a 90-degree layout is required and the shaft dimensions match the application. Its strength is in straightforward mechanical compatibility and higher-power handling.

Low-Backlash Helical Planetary Gearbox – PHF60 14mm Input Low Backlash

If you’re comparing a direct drive helical gearbox for precision motion work, this PHF60 planetary gearbox stands out for its low backlash rating and broad ratio range. It offers a helical output design, 14mm input, 20mm output, and selectable ratios from 4:1 to 100:1, making it a flexible fit for fine-tuned mechanical setups.

Best For: Precision projects that need low backlash and configurable reduction ratios.

Pros:

• Low backlash rating of ≤5 arc minutes
• Wide ratio range from 4:1 to 100:1
• Helical output design for smoother motion transfer
• Compact 14mm in / 20mm out configuration

Cons:

• Product details are limited to basic gearbox specifications
• Very small package dimensions may reflect listing data rather than practical size

This is a strong option when precision matters more than brute force. The low-backlash design and ratio flexibility make it a practical choice for users who need control over speed and positioning.

Mini Right-Angle Steering Gearbox – 1:1 DIY 90 Degree Drive

For small-scale mechanical builds, this direct drive helical gearbox-style unit is actually a right-angle steering gearbox designed for 1:1 transmission. It uses a 1-module, 20-tooth bevel gear arrangement to turn power 90 degrees, making it a simple choice for low-load DIY projects where compact angle transfer is the priority.

Best For: Lightweight DIY mechanisms that need a compact 90-degree gearbox with basic 1:1 transfer.

Pros:

• 1:1 ratio for direct angle transfer
• Compact dual-shaft design for flexible layouts
• Aluminum alloy frame keeps weight down
• 45# steel gears and shafts add durability

Cons:

• Not suitable for high-torque applications
• Not intended for high-speed CNC use
• Best suited to low-load, low-speed projects only

This gearbox is a good match when you need a simple corner-drive solution more than a heavy-duty reducer. Its limits are clear, but for basic DIY mechanical projects, it offers a compact and practical 90-degree transmission setup.

Precision Low-Backlash Helical Planetary Gearbox – PHF60 low-backlash planetary gearbox with helical output

If you need a direct drive helical gearbox-style solution for compact motion control, this PHF60 planetary gearbox is built around low backlash and a helical output design. It offers a 14mm input, 20mm output, and multiple ratio options from 4:1 to 100:1, making it a flexible fit for setups that need controlled speed reduction.

Best For: Compact applications that need low-backlash gearing and a wide ratio range.

Pros:

• Low backlash rating of less than or equal to 5 arc minutes
• Helical output design for smoother gear engagement
• Wide ratio range from 4:1 to 100:1
• Compact 14mm input and 20mm output configuration

Cons:

• Listed details are very minimal beyond dimensions and ratio range
• Product naming suggests a specialized gearbox, so fitment should be checked carefully

This model stands out most for buyers who prioritize low backlash and selectable reduction ratios over broad feature detail. If your application matches the shaft sizes and output style, it looks like a practical precision gearbox option.

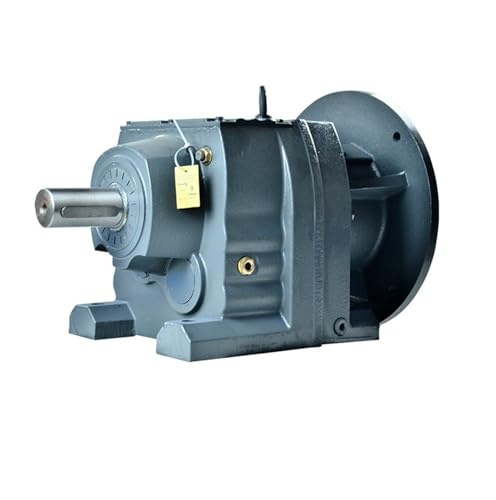

Heavy-Duty Hardened Helical Gear Reducer – R37 hardened helical reducer for industrial replacement use

For buyers comparing a direct drive helical gearbox for industrial machinery, this hardened gear reducer is positioned for durability and long-term use. The notes highlight stable operation, rapid heat dissipation, standardized mounting dimensions, and broad versatility for different speed requirements.

Best For: Agriculture and construction machines that need a durable helical gear reducer.

Pros:

• Hardened tooth surface design for durability
• Rapid heat dissipation helps reduce operating temperatures
• Standardized mounting dimensions for easier direct replacement
• Built for stable, long-term use

Cons:

• Model naming is a little unclear in the listing
• Very little dimensional and performance detail is provided

This reducer is most compelling when your priority is ruggedness and replacement compatibility rather than fine technical specification detail. The standardized mounting note makes it especially relevant for maintenance-minded buyers.

Best for Comfort – PHF60 planetary gearbox with low backlash and helical output

This PHF60 unit is another direct drive helical gearbox-style planetary option aimed at compact motion systems that need low backlash and a helical output. With a 14mm input, 20mm output, and ratio range from 4:1 to 100:1, it gives buyers a straightforward way to match speed reduction to the application.

Best For: Buyers needing a compact planetary gearbox with low backlash and selectable ratios.

Pros:

• Low backlash spec of less than or equal to 5 arc minutes
• Helical output for smoother gearing characteristics
• Ratio range spans 4:1 to 100:1
• Small footprint with 14mm input and 20mm output

Cons:

• Notes duplicate the first PHF60 listing, so differences are limited
• Minimal product information beyond basic ratio and shaft details

If you are narrowing down options for a compact precision reducer, this listing appears to offer the same core setup as the other PHF60 version. The main appeal is the combination of low backlash, helical output, and flexible ratios.

Compact 7:1 Helical Planetary Reducer for NEMA34 – 86mm Flange Stepper Motors

If you’re comparing a direct drive helical gearbox style reducer for a NEMA34 setup, this 7:1 planetary option is built for torque multiplication and slower output speeds in compact machine builds. It is designed for 86mm flange stepper motors with a 12.7mm input shaft, and its low-noise, high-efficiency transmission makes it a practical fit for CNC and bench-top equipment.

Best For: CNC mills, lathes, packaging machinery, and other compact machines that need stepper-motor speed reduction.

Pros:

• Designed for 86 NEMA34 stepper motors with a 12.7mm input shaft
• 7:1 reduction helps increase torque while lowering output speed
• Compact mount with only four screws for simpler installation
• Built for efficient transmission with low-noise operation

Cons:

• Ratio is fixed at 7, so it won’t suit applications needing a different reduction
• Primarily intended for stepper-motor use rather than general-purpose drive setups
• Requires matching flange and shaft dimensions for proper fit

This model is a strong choice when space is limited and you want a straightforward reducer for torque gain. Its practical mounting design and efficient operation make it a sensible option for machine builders who already know they need a 7:1 stage.

Compact 3:1 Helical Planetary Reducer for NEMA23 – 57mm Stepper Motors

For buyers looking at a direct drive helical gearbox solution for a smaller stepper setup, this 3:1 planetary reducer is aimed at NEMA23 applications with a 57mm motor frame and 6.35mm input shaft. It focuses on speed reduction, torque amplification, and efficient transmission in a compact body that is easy to mount in machine builds.

Best For: Smaller CNC, lathe, and packaging machine setups that need a compact NEMA23 reducer.

Pros:

• Matches 57mm NEMA23 stepper motors with a 6.35mm input shaft
• 3:1 ratio provides moderate speed reduction and torque gain
• Compact design mounts with only four screws
• Built for efficient, low-noise operation

Cons:

• Lower ratio than the other reducer options here
• Designed mainly for stepper motors, not broader gearbox use
• Installation still depends on matching the motor frame and shaft size

This is a good fit if you want a lighter reduction stage and a simple mechanical package for a smaller machine. The 3:1 ratio keeps the setup practical for applications where you need some torque boost without a large speed drop.

Heavy-Duty 10:1 Planetary Reducer for NEMA34 – 12.7mm Input / 16mm Output

If your direct drive helical gearbox shortlist needs a higher-reduction option, this 10:1 planetary gearbox is built for NEMA34-style 86mm flange stepper motors with a 12.7mm input shaft. It is intended to reduce speed and increase torque in CNC and benchtop machinery, while keeping the body compact enough for tighter installations.

Best For: CNC routers, bandsaws, and benchtop machines that benefit from a stronger 10:1 reduction.

Pros:

• 10:1 ratio delivers stronger torque multiplication than lower-ratio units
• Fits 86mm flange stepper motors with a 12.7mm input shaft
• 16mm output shaft supports the listed machine interface
• Compact 94mm body length makes installation easier in limited spaces

Cons:

• Heavier at 2.27 kg than the smaller reducer options
• Requires exact match to the 86mm flange and shaft dimensions
• Only includes the gearbox body and screws, so motor matching is still essential

This reducer is the strongest torque-focused option in the group and makes sense when a machine needs more aggressive speed reduction. Its compact footprint and clear fitment specs are useful for builders working around space limits but still wanting a robust drive stage.

How We Picked the Best Direct Drive Helical Gearbox

Our selections emphasize compatibility, reduction range, backlash performance, shaft sizing, and build quality. For a Direct Drive Helical Gearbox setup, the most important question is not just speed reduction, but how smoothly the transmission matches your motor and load requirements.

We prioritized products that cover common use cases: compact automation rigs, CNC axes, servo systems, stepper-driven machines, and heavier-duty industrial equipment.

Quick Comparison

These 10 picks span lightweight precision applications through larger-duty reducers. Some are better suited to NEMA 23 or NEMA 34 stepper integration, while others are built for higher-load industrial gear reduction. Ratio range, frame size, and output configuration vary widely, so compatibility matters more than headline specs alone.

Key Buying Factors for a Direct Drive Helical Gearbox

Ratio and Torque Needs

Choose the reduction ratio based on whether you need more torque, finer positioning, or lower output speed. Lower ratios are usually better for responsiveness, while higher ratios help with control and load handling.

Backlash and Motion Quality

If you are working in CNC, robotics, or precision positioning, low backlash is critical. A helical gearbox is often valued for smoother engagement and quieter operation, but backlash specs still vary by model.

Motor and Shaft Compatibility

Check motor frame size, input shaft diameter, flange pattern, and output shaft style before buying. A gearbox can look like a perfect match on paper and still fail to fit your motor or coupler correctly.

Load, Duty Cycle, and Environment

Light automation, hobby builds, and test rigs have different demands than agriculture, construction, or continuous industrial service. Make sure the reducer is rated for the heat, shock load, and runtime your application creates.

Who Should Buy Which Direct Drive Helical Gearbox?

If you need precise motion for CNC or automated positioning, look first at low-backlash planetary and helical options with a compatible flange and shaft size. If your priority is power transfer for tougher machinery, heavier industrial reducers are the safer choice. For DIY or compact builds, a smaller right-angle or lower-ratio unit may be easier to integrate and tune.

In short, the best Direct Drive Helical Gearbox is the one that matches your motor platform, output torque target, and mounting constraints without forcing extra adapters or compromises.
